Developers do not only write code. They read papers, compare APIs, review architecture proposals, document experiments, and translate vague ideas into systems other people can understand. In all of those tasks, diagrams are often more effective than another paragraph.
The problem is that many technical diagrams are created too late. A team writes a long document first, then adds a diagram because the page feels incomplete. The result is usually a generic chart that repeats the text.
A better approach is to treat diagramming as part of the research workflow itself. When used well, diagrams help developers think, not just present.
Why diagrams matter in developer research
Software research is full of relationships:
- A model depends on a dataset.
- A frontend flow depends on an API contract.
- A background job writes to a queue.
- A monitoring signal explains a failure.
- A security control reduces a specific risk.
- A benchmark changes when a dependency or configuration changes.
Text can describe these relationships, but it can also hide them. A diagram makes structure visible. It helps a reader see what connects, what is missing, and where assumptions are being made.
This is especially useful when a developer is working with unfamiliar material. If you are reading a machine learning paper, exploring a new SDK, planning an internal tool, or reviewing a distributed system, a diagram can become a working model. You can change it as your understanding improves.
Start with the question, not the shape
Many developers begin with the wrong question: "Should this be a flowchart, sequence diagram, architecture diagram, or mind map?"
The better question is: "What should the reader understand faster after seeing this?"
Different questions lead to different diagrams:
- "What happens first, second, and third?" suggests a flowchart or sequence diagram.
- "Which components depend on each other?" suggests a system architecture diagram.
- "How does data move?" suggests a pipeline diagram.
- "What changed between two approaches?" suggests a comparison diagram.
- "What evidence supports this conclusion?" suggests a research summary diagram.
Choosing the shape after choosing the question keeps the diagram focused and prevents the common mistake of drawing every possible detail.

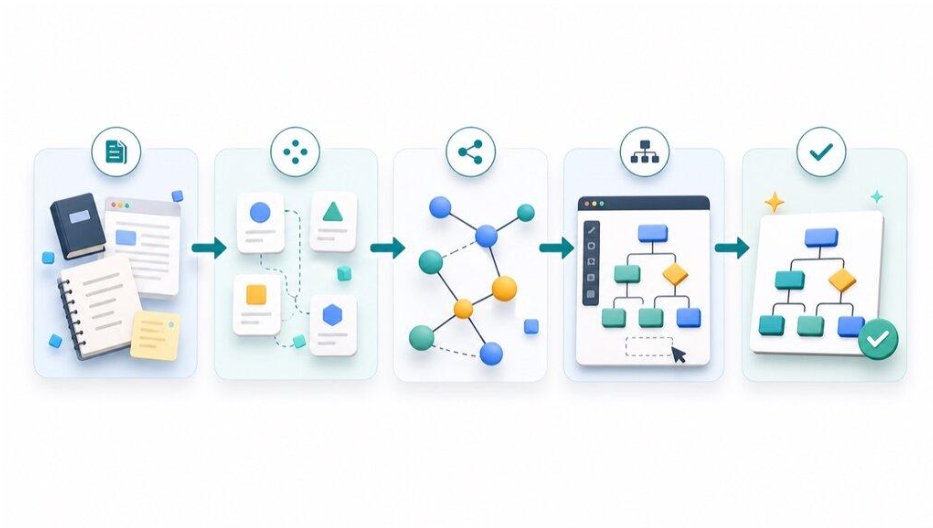

A five-step workflow
Here is a practical workflow developers can use when turning research notes into diagrams.
1. Collect source material in plain language
Start by writing short notes, not polished documentation. Include the important nouns, verbs, and constraints.
For example:
- "The browser sends image input to the API."
- "The API validates the request and stores metadata."
- "A worker processes the image asynchronously."
- "The result is stored and returned through a status endpoint."
- "Failure cases include invalid input, timeout, and unavailable worker capacity."
This outline is easier to convert into a useful diagram than a dense paragraph.
2. Extract entities and relationships
Next, separate the notes into two lists.
Entities:
- Browser
- API
- Metadata store
- Worker
- Result storage
- Status endpoint
Relationships:
- Browser submits input to API
- API validates and stores metadata
- API schedules worker job
- Worker writes result
- Browser checks status endpoint
This step sounds simple, but it is where many diagrams improve. If you cannot clearly identify the entities and relationships, the diagram is probably not ready.
3. Decide the level of abstraction
A diagram for a pull request should not look like a diagram for an investor deck. A diagram for a debugging note should not look like a diagram for public documentation.
Before drawing, decide who the diagram is for:
- A teammate reviewing implementation details
- A product manager reviewing workflow implications
- A security reviewer looking for trust boundaries
- A new engineer learning the system
- A public reader trying to understand a technical concept
For developers, the most useful diagrams usually sit one level above the code. They should show meaningful components and data movement, but avoid listing every function, class, and configuration flag.
4. Generate a first draft, then edit aggressively
AI tools can speed up the first version of a diagram, especially when the source material is already structured. A developer can paste a short outline, ask for a system diagram, and then refine the output. Tools such as an AI diagram generator for research are useful when you need to move from notes to a clean visual explanation without manually arranging every element from scratch.
The key is to treat the generated diagram as a draft. Review it the same way you would review generated code.
Ask:
- Did it add anything that was not in the source notes?
- Did it remove a critical dependency?
- Are arrows pointing in the correct direction?
- Are labels specific enough?
- Is the diagram simpler than the text, or just another form of clutter?
If the diagram cannot survive those questions, revise it.
5. Attach the diagram to a decision
A diagram becomes more valuable when it is connected to a decision or action.
For example:
- "This is the data flow we are implementing in the next sprint."
- "This is the failure path we found during the incident review."
- "This is why we chose asynchronous processing instead of a synchronous request."
- "This is the difference between the current architecture and the proposed version."
- "This is how the research paper's method maps to our prototype."
Without that context, a diagram is just a picture. With context, it becomes part of the team's technical memory.
A useful prompt pattern
When using AI to draft technical diagrams, the input matters. A vague prompt creates a vague diagram. A structured prompt creates a better starting point.
Try this pattern:
"Create a technical diagram for [audience]. The goal is to explain [main question]. Use these components: [list]. Show these relationships: [list]. Highlight these constraints: [list]. Keep the diagram simple enough for [use case]."
This prompt works because it gives the model structure, not just a topic. For example, instead of asking for "an architecture diagram," specify the components, the direction of data flow, and the failure paths that matter to the reader.
Common mistakes to avoid
The first mistake is over-diagramming. If the reader needs more time to understand the visual than the text, the diagram is failing.
The second mistake is mixing levels. Do not put high-level system components and low-level helper functions in the same diagram unless the contrast is the point.
The third mistake is trusting generated output without review. AI can produce clean-looking visuals that contain incorrect relationships, and the visual polish can make mistakes harder to notice.
Final thought
The best technical diagrams are not decoration. They are compressed reasoning. They help developers move from scattered notes to shared understanding.
Whether you are documenting a new feature, studying a research paper, explaining an AI workflow, or reviewing an architecture change, start with the question the diagram needs to answer. Then build the visual around that question. The result will be easier to read, easier to review, and much more useful than another wall of text.
